Outdoor IoT Devices Vertical Alignment Va Panel 4k Va Monitor 1000cd/M2

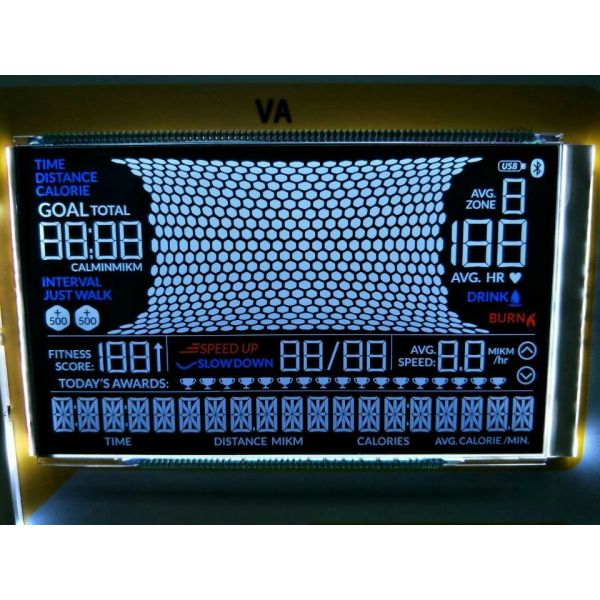

Monochrome COB Segment VA Displays for Outdoor IoT Devices

Designed for outdoor and IoT applications, our VA (Vertical Alignment) Segment LCDs with COB (Chip-on-Board) technology deliver unmatched durability and clarity in harsh environments. Tailored for weather stations, air quality monitors, and remote metering terminals, these displays combine VA’s high contrast, COB’s environmental resilience, and IoT-ready integration to ensure reliable performance under extreme conditions.

Key Features & Specifications

1. Outdoor-Optimized Durability

• IP67 Sealing: Fully dustproof and waterproof (submersible up to 1m for 30 minutes).

• Wide Temperature Range: Operates at -30°C~80°C (storage: -40°C~85°C), tested for deserts, coastal areas, and Arctic zones.

• UV Resistance: Hardened coating prevents sunlight degradation (5+ years outdoor lifespan).

2. High-Visibility Display

• VA Technology: ≥1000:1 contrast ratio with 170° viewing angles, readable under direct sunlight or foggy conditions.

• Sunlight Mode: 500 cd/m² backlight (optional) for glare-free readability.

• Anti-Condensation: Heater layer option (-20°C~60°C dew point control).

3. IoT-Ready Efficiency

• Ultra-Low Power: ≤2μA standby current (10+ years on lithium batteries for remote meters).

• Wide Voltage: 3.0V~5.5V DC (supports solar-powered or battery-operated systems).

• EMI Immunity: EN 55032 compliance for stable performance near cellular/Wi-Fi transmitters.

Technical Specifications

Parameter	Description
Segment Layout	Customizable icons or data fields
Response Time	≤20ms (real-time sensor updates)
Interface	SPI/I²C, RS-485, or LoRaWAN-ready modules
Certifications	IP67, RoHS, CE, IEC 60068-2 (environmental)

Customization Options

• IoT Protocols: Pre-integrated NB-IoT, LTE-M, or Sigfox modules.

• Mechanical Design: Anti-vandal metal frames, pole-mount brackets, or solar panel compatibility.

• Data Security: Encrypted communication protocols (AES-128).

Target Applications

• Environmental Monitoring: Weather stations, PM2.5/CO₂ sensors, flood warning displays

• Smart Utilities: Remote water/gas meters, smart grid terminals

• Urban IoT: Parking lot sensors, streetlight control panels, waste management systems

Why Choose Us?

✅ Outdoor Expertise: Validated for MIL-STD-810G (shock/drop) and 5,000-hour UV testing.
✅ Rapid Prototyping: Fast-track prototyping with "Priority Delivery" (subject to design complexity).
✅ Global Compliance: Pre-certified for FCC, CE, and RoHS to accelerate deployments.

Service Commitment

• Lead Time: 4–6 weeks (scalable for high-volume orders).

• Support: Lifetime firmware updates and IoT protocol integration.
